Cabin Foundations: The Most Important Part of Your Cabin

"A beautiful cabin sitting on a poor foundation is just a problem waiting to happen."

Everyone gets excited about building the walls, framing the roof, and imagining evenings around the wood stove. Those are the fun parts of building a cabin. But long before you cut your first board, you need to build something that most people will never notice—the foundation.

After spending a lifetime building, I've learned one simple truth:

Every great cabin starts with a great foundation.

You can install the finest windows, the straightest walls, and the most beautiful cedar siding, but if the foundation settles, moves, or shifts, everything above it will eventually suffer. Doors won't close properly. Windows begin to stick. Floors become uneven. Cracks appear where there once were tight joints.

The foundation isn't the exciting part of the project, but it is unquestionably the most important.

It All Starts With Choosing the Right Location

Before you ever think about digging holes or stacking foundation blocks, take the time to choose your building site carefully.

Walk your property.

Look at how the land naturally drains after a rainstorm. Notice where water collects and where it naturally runs. A cabin should be positioned so surface water flows away from it—not toward it.

Think about:

• Sun exposure

• Prevailing winds

• Views

• Driveway access

• Future additions

• Privacy

• Trees you want to preserve

Sometimes moving your cabin only twenty feet can make a tremendous difference in drainage and long-term maintenance.

Nature has usually been there a lot longer than we have. Pay attention to what it's telling you.

Clear the Building Area Properly

Many first-time builders only clear enough space to fit the cabin.

Don't.

Give yourself plenty of working room around the entire building. Equipment, material deliveries, scaffolding, and ladders all require space.

Remove:

• Trees

• Stumps

• Brush

• Large roots

• Organic material

The cleaner your work area is now, the easier every step becomes later.

Build on Virgin Ground

One of the most overlooked parts of foundation work is making sure you're building on undisturbed, virgin soil.

Loose fill settles.

Organic material decomposes.

Topsoil compresses.

Roots rot away.

Any of these can cause your foundation to move over time.

Always excavate until you reach solid, undisturbed ground capable of supporting the weight of your cabin.

If you're unsure about the soil, spend extra time investigating before you pour concrete. It's much easier to correct a problem now than after the cabin is built.

Watch for Rocks and Roots

Rocks can be both your friend and your enemy.

Solid bedrock can provide an excellent bearing surface. Loose boulders or unstable rock can shift over time.

Large tree roots should never be left beneath a footing or post. As roots decay, they leave voids that allow settling.

When in doubt, remove questionable material rather than building over it.

Water Is Your Biggest Enemy

Most foundation failures aren't caused by weak concrete.

They're caused by water.

Always grade the site so water flows away from the cabin on every side.

Plan for positive drainage before construction begins.

A few extra hours with a shovel or skid steer now can prevent years of moisture problems later.

Keep water moving away from your investment.

Dig Below Frost Depth

Every area has a required frost depth.

Your foundation footings or posts should extend below that frost line to prevent frost heaving during freezing weather.

Never guess.

Check your local building requirements and follow them.

Frost can lift an entire building several inches if the foundation isn't installed correctly.

The deeper excavation may require more work today, but it protects your cabin for decades.

Always Follow Your Cabin Plans

Quality cabin plans are designed so the foundation properly supports the structure above.

Don't make changes unless you understand how those changes affect the building.

Pay close attention to:

• Footing sizes

• Pier locations

• Beam placement

• Floor support

• Post spacing

• Overall dimensions

The foundation is the base for everything else. Accuracy here makes every step easier later.

Layout Is Everything

The old saying is still true:

Measure twice. Build once.

Take your time laying out the foundation.

Check:

• Overall dimensions

• Diagonal measurements

• Square corners

• String lines

• Elevations

A foundation that's only one inch out of square can create headaches throughout the entire project.

The extra time spent on layout pays for itself many times over.

Excavating for a Block Foundation

If you're building on a traditional block foundation with a concrete floor or crawl space, excavation should be completed according to your plans.

The process generally includes:

• Excavating to proper depth.

• Preparing solid footing areas.

• Pouring reinforced concrete footings.

• Laying concrete block walls.

• Installing anchor bolts where required.

• Preparing for the concrete floor if applicable.

If your cabin includes a crawl space, don't forget two important details that are often overlooked.

Provide access to the crawl space.

Install foundation windows or vents to allow ventilation and natural light.

These simple additions make future maintenance much easier.

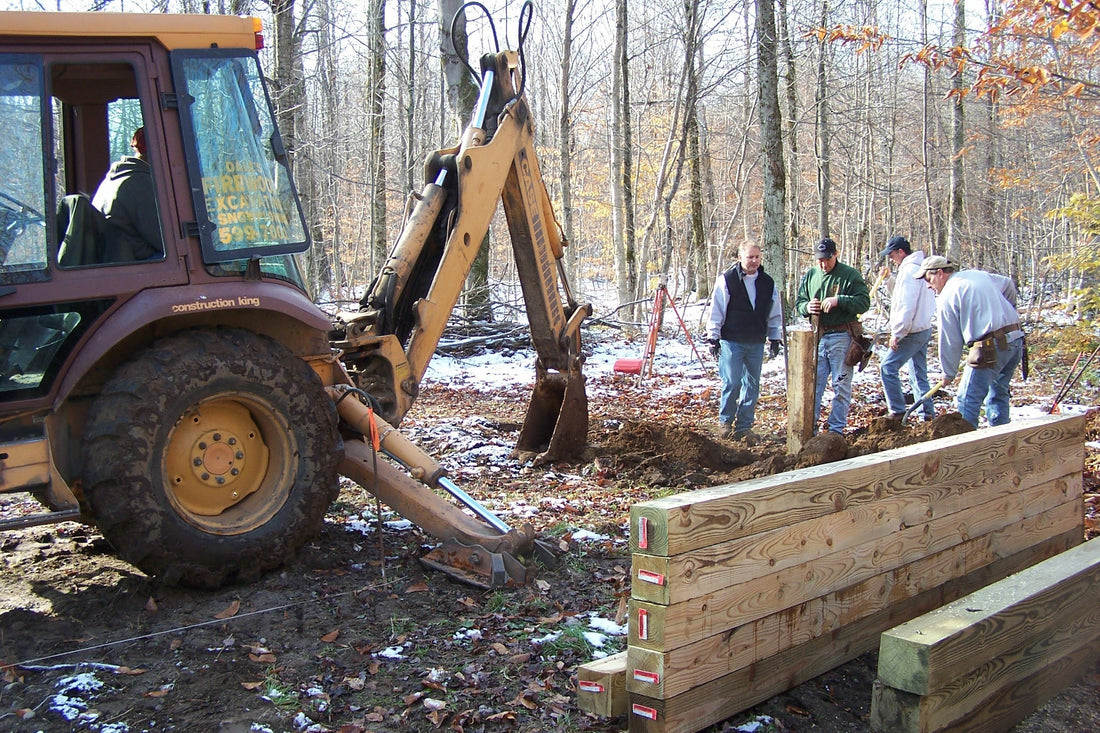

Building a Post and Beam Foundation

Many smaller cabins are perfectly suited for a post and beam foundation.

When installed correctly, they're economical, durable, and easier for many DIY builders.

The process generally includes:

• Carefully laying out every post location.

• Drilling or digging each post hole to the required frost depth.

• Installing Sonotube forms when needed.

• Pouring concrete.

• Installing Simpson Strong-Tie 6x6 post bases while the concrete is still properly positioned.

• Backfilling the holes, leaving the soil slightly high to allow for natural settling.

Once the concrete has cured, install your 6x6 posts.

Carefully plumb every post.

Install beams using the proper Simpson hardware and structural screws specified for the connectors.

Don't rush this step.

The straighter and more accurate your posts and beams are, the easier your floor framing will be.

Precision Matters

A foundation isn't the place to "eyeball it."

Use levels.

Use string lines.

Check measurements repeatedly.

Verify elevations.

Small mistakes at the foundation become large mistakes by the time you reach the roof.

Professional carpenters know this.

Experienced DIY builders eventually learn it.

You can save yourself a tremendous amount of frustration by taking your time from the very beginning.

A Foundation Is an Investment, Not an Expense

Many builders are tempted to save money below ground because no one will ever see it.

That's backwards.

The foundation supports every pound of lumber, roofing, windows, furniture, and everything your family brings into the cabin.

If there is one place to invest extra time, care, and attention, this is it.

Build it once.

Build it correctly.

Build it to last.

Final Thoughts

Whether you're building your very first weekend getaway or you've been swinging a hammer for years, the foundation deserves your full attention.

Everything else depends on it.

Take the time to choose the right location.

Build on solid virgin ground.

Plan for proper drainage.

Excavate below frost depth.

Follow your cabin plans carefully.

Lay everything out accurately.

Whether you choose a concrete block foundation or a post and beam system, remember this simple principle:

The quality of your entire cabin will never be better than the foundation it stands on.

Build the foundation right, and the rest of the cabin becomes a pleasure to build.

Happy Building,

Frank Martin
